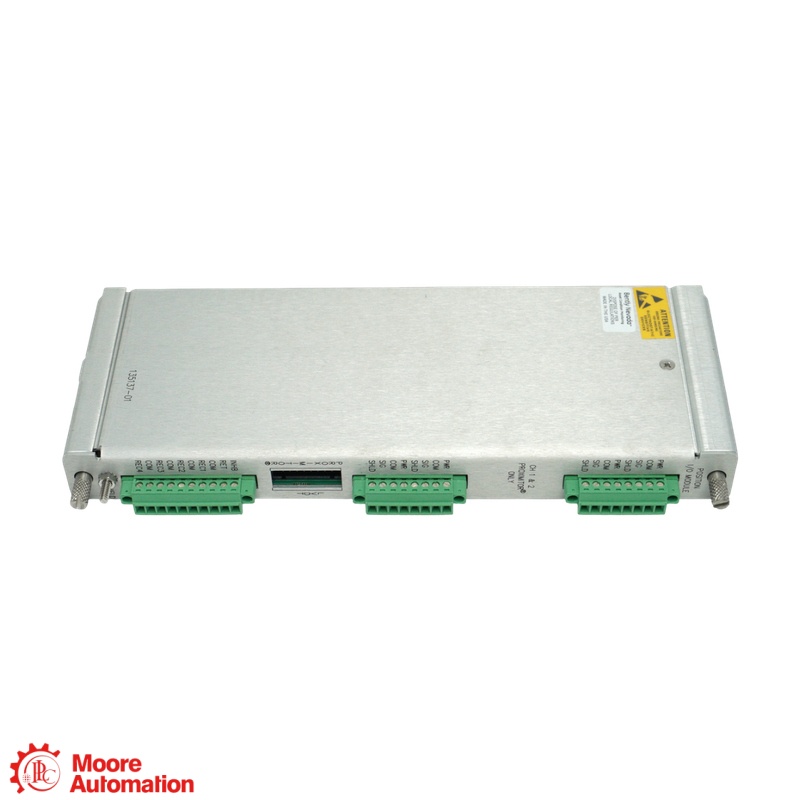

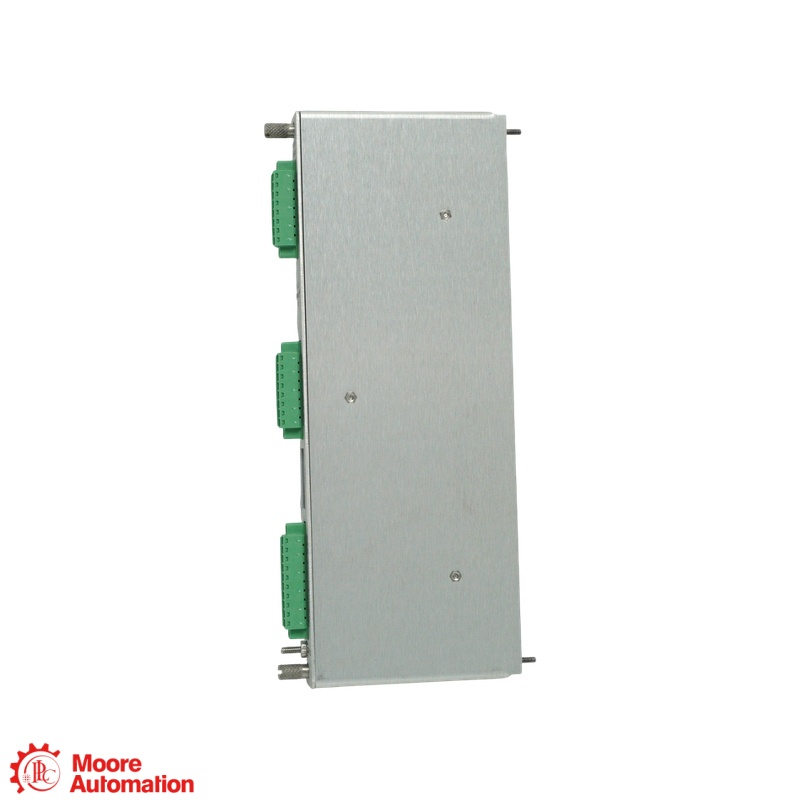

The Bently Nevada 135145-01 is a Position I/O Module for the 3500/45 Position Monitor
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
135145-01น้ำหนัก :
0.25 kgมิติ :
26x26x3.5cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
3500/45 Position I/O Module
|
Product Enquiry |
Contact Details |
|
Model Number |
135145-01 |
|
Sales Contact |
Frida |
|
Fast Contact |
|
|
Email Request |
|
|
Please Provide |
Required quantity and destination country |
Product Overview
The Bently Nevada 135145-01 is a Position I/O Module for the 3500/45 Position Monitor. It provides an external-termination interface for Proximitor sensors, Rotary Position Transducers (RPTs), and DC LVDTs. In a 3500/45 system, these inputs support machinery position measurements such as thrust position and differential expansion, depending on the selected transducer and monitor configuration. The module is the I/O interface—not the position monitor or the transducer itself.
Technical Specifications
Parameter
Value
Part number
135145-01
Product type
Position I/O Module with External Terminations
Associated monitor
Bently Nevada 3500/45 Position Monitor
Supported transducer inputs
Proximitor, RPT, DC LVDT
Rack space
One full-height rear slot
System input impedance
10 kΩ for Proximitor or RPT; 1 MΩ for DC LVDT
System transducer supply
−24 Vdc for Proximitor or RPT; +15 Vdc for DC LVDT
Operating temperature with this I/O type
−30°C to +65°C
Model Benefits
• External-termination format: Provides the 3500/45 Position I/O option intended for external termination connections.
• Multiple supported transducer types: Works with the specified Proximitor, RPT, or DC LVDT input arrangements.
• Application flexibility: The associated 3500/45 monitor supports several position measurements, including thrust position and differential expansion.
• Clear model distinction: Unlike 135137-01, which the manufacturer lists with internal terminations, 135145-01 is the external-termination version.
Frequently Asked Questions
Question
Answer
1. Which transducer types does 135145-01 support?
Baker Hughes lists it for Proximitor sensors, Rotary Position Transducers (RPTs), and DC LVDTs.
2. Does 135145-01 support AC LVDT inputs?
No. The manufacturer lists separate AC LVDT Position I/O modules for the 3500/45.
3. What is the difference between 135145-01 and 135137-01?
Both are listed for Proximitor, RPT, or DC LVDT inputs. 135145-01 uses external terminations; 135137-01 uses internal terminations.
4. Which position measurements can a 3500/45 system perform with suitable inputs?
The monitor supports functions including thrust position and differential expansion. The available measurement depends on the configured transducer input.
Industries Served
• Oil & Gas: Supports position measurements on monitored compressors, turbines, and other critical rotating equipment.
• Power Generation: Used in 3500/45 monitoring arrangements for turbine shaft position and differential expansion.
• Petrochemical Processing: Provides the position-input interface for machinery monitoring across continuous-process plants.
• Industrial Manufacturing: Supports position monitoring on rotating assets where shaft movement or machine expansion is tracked.
