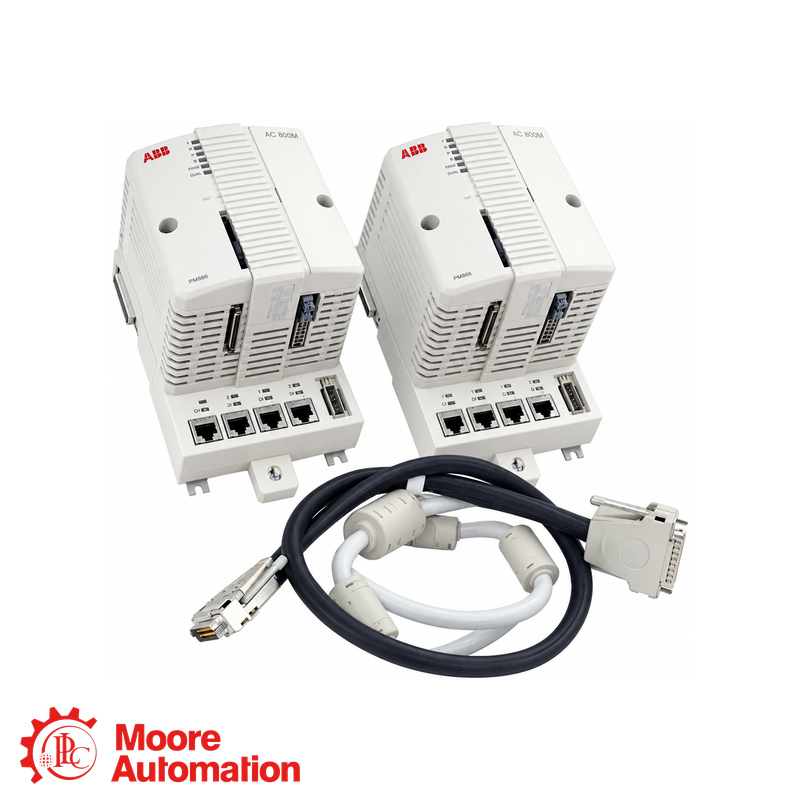

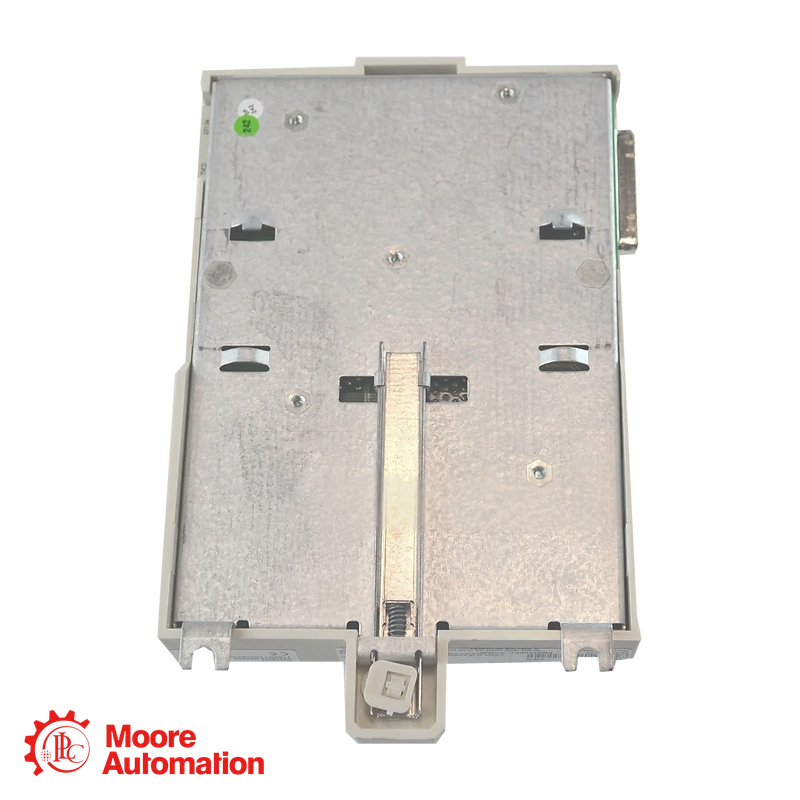

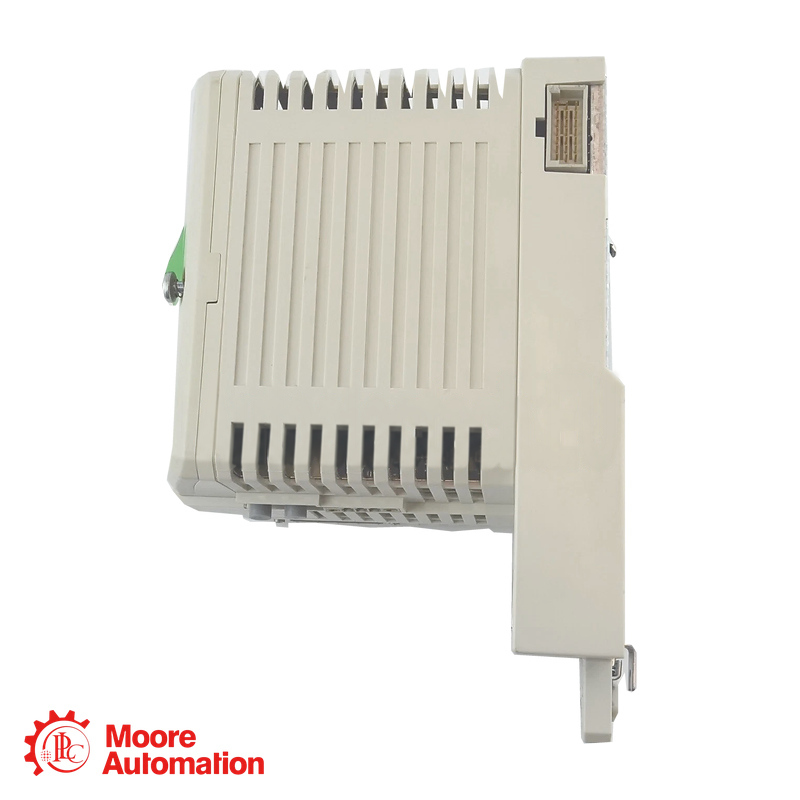

ABB PM866AK02 3BSE081637R1 AC 800M Redundant Processor Unit

Parameter

Specification

Manufacturer

ABB

Product Model

PM866AK02

Article Number

3BSE081637R1

Product Family

AC 800M

Product Type

Redundant processor unit package

Redundancy

Yes

Included CPU Modules

2 × PM866A

Included Baseplates

2 × TP830, 115 mm width

Processor Type

MPC866

Clock Frequency

133 MHz

Performance for 1,000 Boolean Operations

0.09 ms

Total Memory

64 MB

RAM Available for Applications

51.389 MB

Firmware Flash PROM

4 MB

Minimum Application-Program Cycle Time

1 ms

Applications per Controller

32

Programs per Application

64

Diagrams per Application

128

Tasks per Controller

32

Different Cycle Times

32

Maximum Switch-Over Time

10 ms in a redundant configuration

Power Supply

24 V DC

Permitted Supply Range

19.2–30 V DC

Application Area

Typical Use

Redundant Process Control

PM866AK02 can be used in continuous process applications where controller availability is an important design requirement. The paired processors can execute sequencing, interlocking, regulation and equipment-control functions within an engineered AC 800M redundancy configuration.

Plant Utility Automation

The package can control steam, cooling-water, compressed-air, water-treatment and other plant utility systems. Its application capacity allows several utility sections and execution tasks to be coordinated within the same controller project.

Large Distributed-I/O Systems

CEX-Bus and optical ModuleBus resources support installations with communication interfaces and geographically distributed I/O clusters. ABB specifies up to 84 ModuleBus I/O modules for a redundant PM866 configuration.

Production and Material-Handling Control

PM866AK02 can coordinate production sections, conveyors, equipment permissives and operating sequences where loss of the primary controller should initiate transfer to the redundant controller path.
