The ABB PM862K02 3BSE081636R1 is a redundant AC 800M processor package designed for control applications that require increased controller availability
ยี่ห้อ :
ABBส่วนจำนวน :
PM862K02 3BSE081636R1น้ำหนัก :
1.2 kgมิติ :
11.9x18.6x13.5 cmประเทศต้นกำเนิด :
Swedenรหัส HS :
8537101190คำอธิบาย :
Redundant Processor Unit
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Product Overview

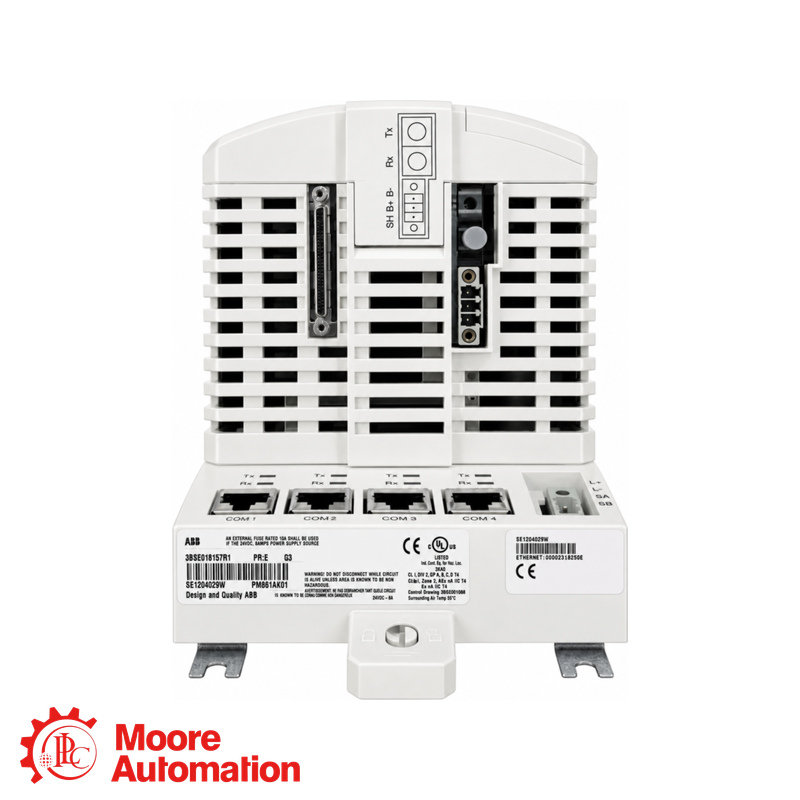

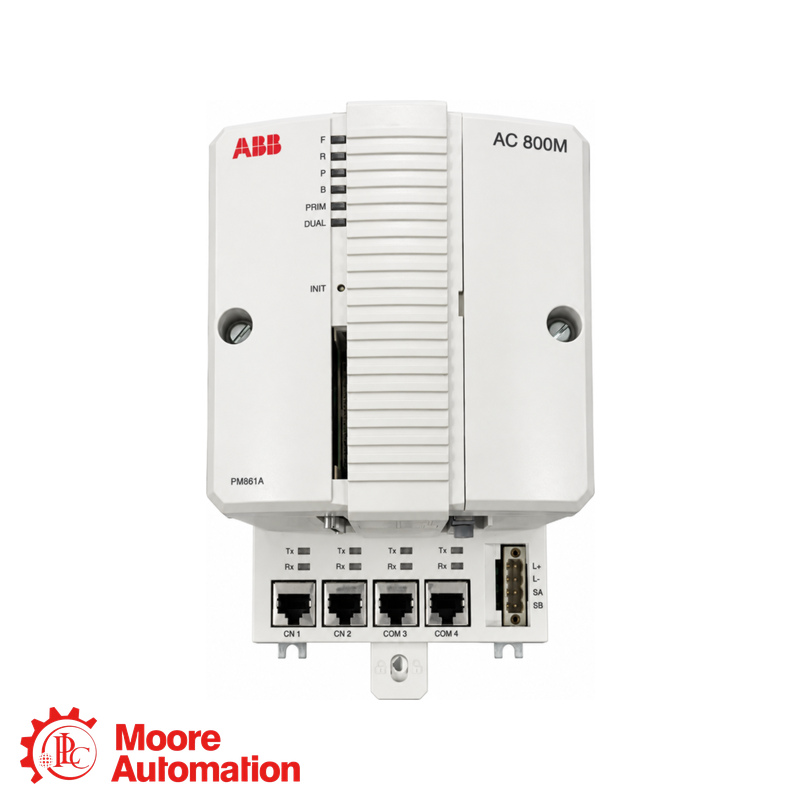

The ABB PM862K02 3BSE081636R1 is a redundant AC 800M processor package designed for control applications that require increased controller availability. The package contains two PM862 processor units, two TP830 baseplates, the required bus terminators and interconnection cables, and one memory-backup battery for each controller. Each PM862 processor uses a 67 MHz MPC866 processor and provides 32 MB of memory, including 23.521 MB of application RAM. The controller executes 1,000 Boolean operations in approximately 0.18 ms and supports application cycle times down to 1 ms. In a redundant installation, one processor operates as the primary controller while the second remains synchronized as the backup. ABB specifies a maximum processor switch-over time of 10 ms. Overall process continuity also depends on the I/O configuration, communication paths, controller tasks and application design.
Technical Specifications
|
Parameter |
Specification |
|
Manufacturer |
ABB |
|
Model Number |
PM862K02 |
|
Article Number |
3BSE081636R1 |
|
Product Family |
AC 800M |
|
Product Type |
Redundant processor unit package |
|
Processor Units Included |
2 × PM862 CPU units |
|
Baseplates Included |
2 × TP830 baseplates |
|
Baseplate Width |
115 mm |
|
Additional Package Components |
2 × TB807 ModuleBus terminators, 1 × TK850 CEX-Bus cable and 1 × TK851 RCU-Link cable |
|
Backup Batteries Included |
2 × 4943013-6 lithium batteries |
|
Processor Type |
MPC866 |
|
Processor Clock Frequency |
67 MHz |
|
Execution Performance |
1,000 Boolean operations in 0.18 ms |
|
Total Memory |
32 MB per processor |
|
Application RAM |
23.521 MB per processor |
|
Firmware Flash PROM |
4 MB |
|
Flash Application/Data Storage |
Supported |
|
Minimum Application Cycle Time |
1 ms |
|
Applications per Controller |
Maximum 32 |
|
Programs per Application |
Maximum 64 |
|
Diagrams per Application |
Maximum 128 |
|
Tasks per Controller |
Maximum 32 |
|
Different Cycle Times |
Maximum 32 |
|
Maximum Processor Switch-Over Time |
10 ms |
|
Supply Voltage |
24 V DC |
|
Permitted Supply Range |
19.2–30 V DC |
Benefits
• Increased controller availability
• Coordinated primary and backup processor operation
• Predictable control-task execution
• Expandable communication architecture
• Support for distributed and redundant S800 I/O
• Complete K02 hardware package for redundant installation
• Centralized engineering through Compact Control Builder
• Compact control-cabinet installation
Application Areas
|
Application Area |
Typical Use |
|
Redundant Process Control |
Suitable for continuous process units where a controller interruption could affect production stability. The paired processors provide primary and backup controller operation within an AC 800M architecture. |
|
Plant Utility Automation |
Can coordinate pumps, compressors, water systems, energy distribution and other common plant utilities. Redundant processing helps maintain control availability across interconnected utility equipment. |
|
Distributed S800 I/O Systems |
Applicable to installations using remote or cabinet-based S800 I/O over optical ModuleBus. A redundant configuration supports up to seven optical clusters and a maximum of 84 redundant I/O modules. |
|
Production and Material-Handling Lines |
Can execute sequencing, interlocking, equipment coordination and supervisory control for automated production or material-flow systems. Multiple applications, programs and controller tasks can be organized within one controller platform. |
Frequently Asked Questions
Q1. What is the difference between PM862K01 and PM862K02?
PM862K01 is the single-controller package. PM862K02 is the redundant package and includes two processors, two baseplates and the additional components required to connect the controller pair.
Q2. Does the 10 ms switch-over time guarantee uninterrupted process operation?
The 10 ms value is ABB’s specified maximum processor switch-over time. Complete process behaviour also depends on task execution, communication recovery, I/O redundancy, field-device response and how the control application handles the transfer.
Q3. Can COM3 and COM4 be used as redundant serial communication channels?
ABB identifies the integrated COM3 and COM4 interfaces for non-redundant configurations. Projects requiring redundant serial communication should use an appropriate supported communication architecture rather than treating these onboard ports as a redundant channel pair.
Contact Below to Get Best Price
Contact
Mobile / WhatsApp
Email
PM862K01 3BSE076940R1
Frida
+86 15359408275
sales5@mooreplc.com
Product Supply & Ordering Information
Parameter
Ordering Information
Manufacturer
ABB
Required Model
PM862K02
Complete Article Number
3BSE081636R1
Required Quantity
State the number of processor packages required
Controller Arrangement
Confirm whether the project uses a single or redundant controller architecture
Software Environment
Provide the System 800xA or Compact Control Builder version when available
Firmware Information
Provide the installed controller firmware revision for replacement projects
Package Scope
Confirm the processor package, baseplate and required accessories in the quotation
Additional Hardware
Identify required power supplies, CEX-Bus interfaces, communication modules or battery accessories separately
Delivery Destination
Provide the destination country, city and postal code
Requested Delivery Date
State the required project or maintenance schedule
Order Verification
Provide the complete model number and a clear controller-label photograph when available
Final Confirmation
Check the model, article number, quantity, package scope, lead time and shipping method before ordering
