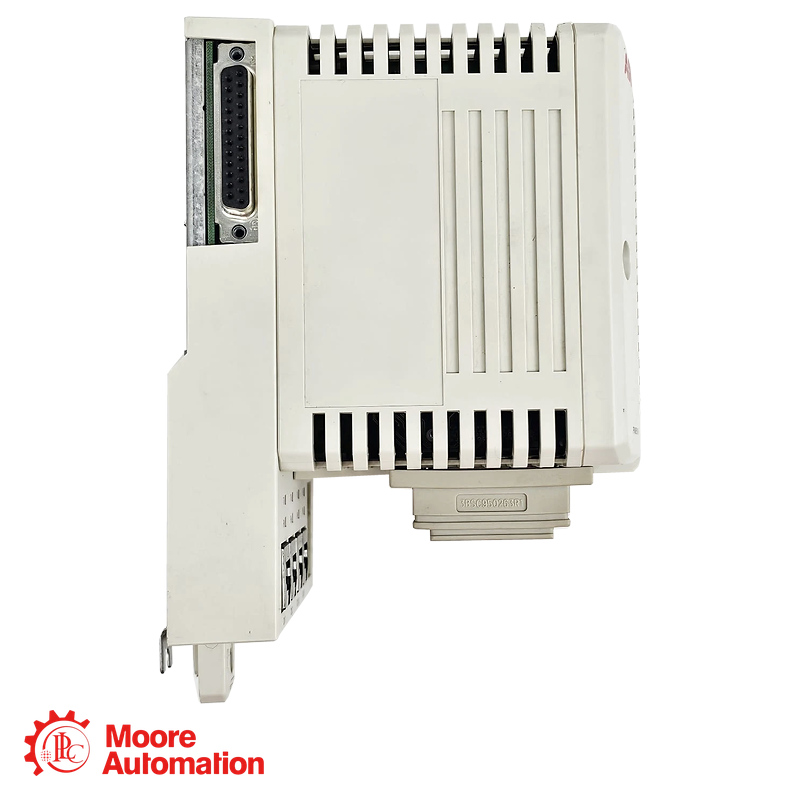

The ABB PM861AK02 3BSE018160R1 is a redundant processor-unit package for the AC 800M control platform
ยี่ห้อ :
ABBส่วนจำนวน :
PM861AK02 3BSE018160R1น้ำหนัก :
1.2 kgมิติ :
11.9x18.6x13.5 cmประเทศต้นกำเนิด :
Swedenรหัส HS :
8537101190คำอธิบาย :
Processor Unit
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Product Overview

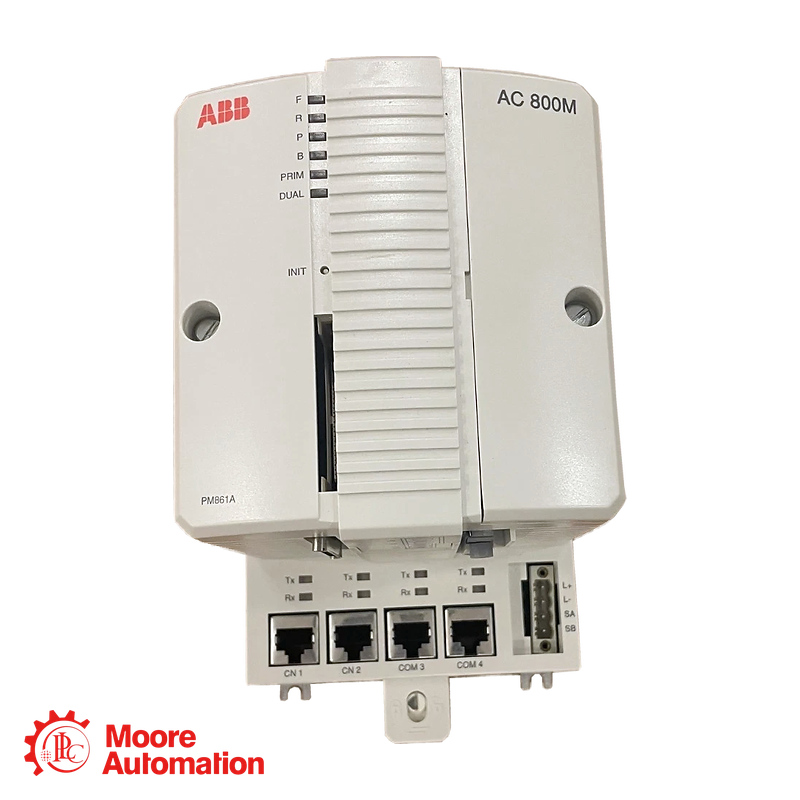

The ABB PM861AK02 3BSE018160R1 is a redundant processor-unit package for the AC 800M control platform. ABB identifies the package as two PM861AK01 processor units combined with a TK850 CEX-Bus expansion cable and a TK851 RCU-Link cable. Each PM861AK01 processor unit incorporates a PM861A CPU, TP830 baseplate, TB850 CEX-Bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator and memory-backup battery. The K02 package therefore provides the principal controller hardware required to create a paired PM861A configuration. The PM861A uses a 48 MHz MPC860 processor and provides 16 MB of SDRAM, including 7.155 MB available for control applications. ABB specifies 0.23 ms for 1,000 Boolean operations and application-program cycle times down to 1 ms. In a redundant arrangement, the primary and backup processors are connected through the Redundancy Control Link. ABB specifies a transfer time of less than 10 ms from the primary CPU to the backup CPU. Actual process behavior during the transfer also depends on the application, communication modules, distributed I/O arrangement and controller configuration.
Technical Specifications
|
Parameter |
Specification |
|
Product Model |
PM861AK02 |
|
Article Number |
3BSE018160R1 |
|
Product Family |
AC 800M |
|
Product Type |
Redundant processor-unit package |
|
Package Configuration |
Two PM861AK01 processor units |
|
CPU Model |
PM861A |
|
Processor Type |
MPC860 |
|
Clock Frequency |
48 MHz |
|
Performance for 1,000 Boolean Operations |
0.23 ms |
|
Total SDRAM |
16 MB |
|
RAM Available for Applications |
7.155 MB |
|
Firmware Flash PROM |
2 MB |
|
Power Supply |
24 V DC |
|
Permitted Supply Range |
19.2–30 V DC |
|
CPU Current Consumption |
250 mA typical; 430 mA maximum |
|
CPU Power Dissipation |
6 W typical |
|
Power Dissipation with Full ModuleBus and CEX-Bus Supply |
11 W typical |
|
Built-In Backup Battery |
Lithium, 3.6 V |
|
Minimum Internal-Battery Backup Time for PM861A |
118 hours |
|
CEX-Bus Communication Modules |
Maximum 12 |
|
CEX-Bus Supply Current |
Maximum 2.4 A |
|
Recommended Control Network Backbone |
100 Mbit/s switched Ethernet |
|
Operating Temperature |
+5 to +55 °C |
|
Storage Temperature |
-40 to +70 °C |
|
Relative Humidity |
5–95%, non-condensing |
Benefits
• Paired controller architecture for improved system availability
• Defined K02 package for redundant installations
• Predictable execution for established AC 800M applications
• Expandable communication-interface structure
• Support for distributed optical ModuleBus I/O
• Battery-backed application memory
• Compact rail-mounted construction
• Suitable for maintaining an installed PM861A architecture
Application Areas
|
Application Area |
Typical Use |
|
Redundant Process Control |
PM861AK02 can operate sequencing, interlocking and regulation applications where a paired AC 800M controller arrangement is required. Transfer from the primary CPU to the backup CPU is specified at less than 10 ms, although complete process response depends on the engineered system. |
|
Plant Utility Automation |
The controller package can coordinate water distribution, compressed-air, cooling, steam and other utility functions. Separate application tasks can be assigned according to the required execution rate and operating priority. |
|
Distributed Optical I/O Systems |
In a redundant CPU arrangement, PM861A supports seven optical ModuleBus clusters and up to 84 ModuleBus I/O modules. This makes the package applicable to installations where field I/O is distributed across several plant areas. |
|
Production and Material-Handling Control |
PM861AK02 can coordinate conveyors, production sections, equipment permissives and machine sequences within an AC 800M architecture that requires primary and backup processors. |
Frequently Asked Questions
Q1. What is included in the PM861AK02 package?
ABB describes PM861AK02 as two PM861AK01 processor units supplied with one TK850 CEX-Bus expansion cable and one TK851 RCU-Link cable. Each PM861AK01 includes a PM861A CPU, TP830 baseplate, CEX-Bus and ModuleBus terminators, RCU-Link terminator and backup battery.
Q2. What is the difference between PM861AK01 and PM861AK02?
PM861AK01 is a single processor-unit package. PM861AK02 contains two PM861AK01 units and the cables required to establish the controller redundancy links. The two article numbers should not be treated as the same package configuration.
Q3. How should ModuleBus I/O be arranged in a redundant PM861A system?
ABB specifies seven optical ModuleBus clusters and a maximum of 84 I/O modules for a redundant PM861A configuration. The electrical ModuleBus is not listed as an active I/O cluster in the redundant arrangement, so the optical architecture should be reviewed during system design.
Contact Below to Get Best Price
Contact
Mobile / WhatsApp
Email
PM862K01 3BSE076940R1
Frida
+86 15359408275
sales5@mooreplc.com
Product Supply & Ordering Information
Parameter
Ordering Information
Manufacturer
ABB
Required Model
PM861AK02
Complete Article Number
3BSE018160R1
Required Quantity
State the number of processor packages required
Controller Arrangement
Confirm whether the project uses a single or redundant controller architecture
Software Environment
Provide the System 800xA or Compact Control Builder version when available
Firmware Information
Provide the installed controller firmware revision for replacement projects
Package Scope
Confirm the processor package, baseplate and required accessories in the quotation
Additional Hardware
Identify required power supplies, CEX-Bus interfaces, communication modules or battery accessories separately
Delivery Destination
Provide the destination country, city and postal code
Requested Delivery Date
State the required project or maintenance schedule
Order Verification
Provide the complete model number and a clear controller-label photograph when available
Final Confirmation
Check the model, article number, quantity, package scope, lead time and shipping method before ordering
