ABB ACS580-01-12A7-4 5.5 kW General Purpose AC Drive

Contact Frida for ACS580-01-12A7-4 Pricing

Product Overview

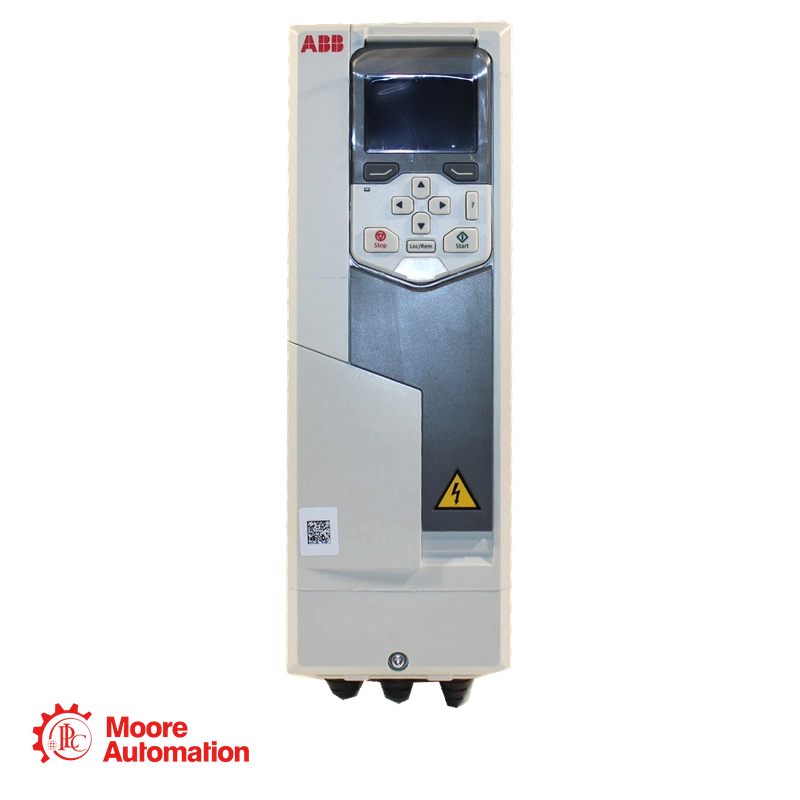

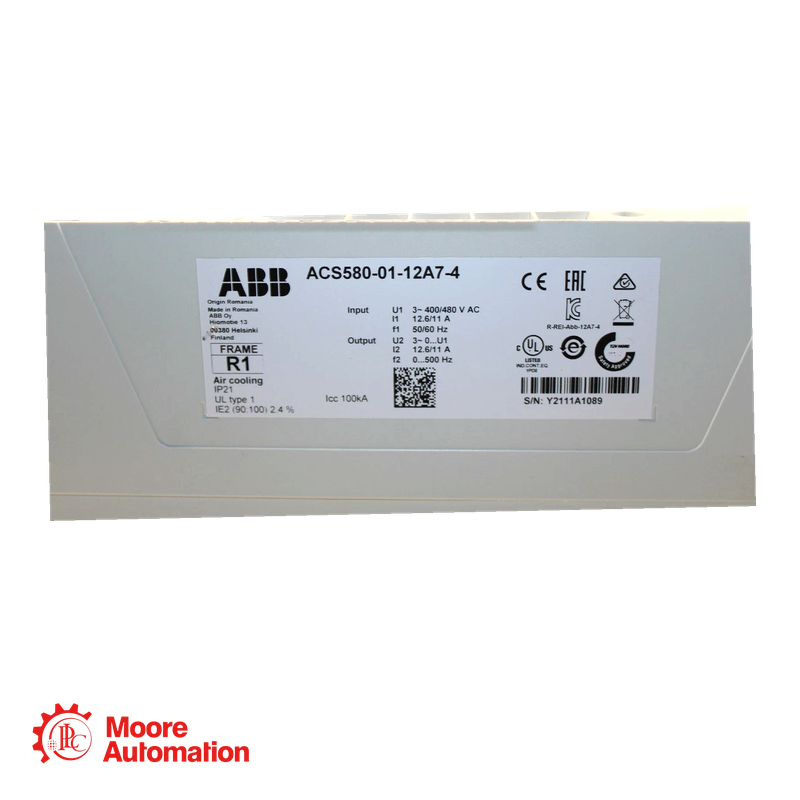

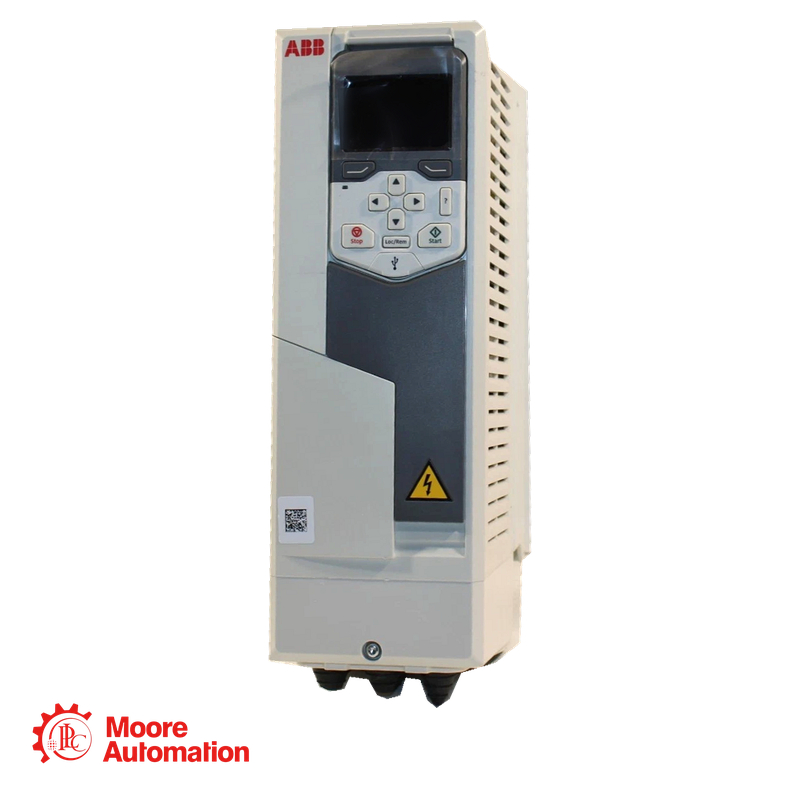

The ABB ACS580-01-12A7-4 is a wall-mounted general-purpose AC drive for regulating the speed and torque of three-phase motors. Its IEC nominal rating is 5.5 kW with an output current of 12.6 A at 400 V. The drive is built in the compact R1 frame and supplied with an IP21 enclosure. It is intended for installation in a suitable indoor electrical environment where airflow is maintained and the equipment is protected from moisture, condensation and conductive contamination. The ACS580 platform supports induction, permanent-magnet and synchronous reluctance motors. An assistant control panel, Safe Torque Off, Modbus RTU communication, an EMC filter and a braking chopper are included in the standard configuration. Engineers can use the drive as a standalone motor controller or integrate it with a wider automation system.

Technical Specifications

Benefits

-Controlled motor acceleration
-Reduced starting current
-Adjustable operating speed
-Lower mechanical starting stress
-Compact wall-mounted installation
-Simplified parameter setup
-Integrated energy monitoring
-Flexible automation connectivity

Key Highlights

● 5.5 kW nominal IEC motor rating
● 12.6 A nominal output at 400 V
● 15.3 A maximum output current
● 380–480 V three-phase supply class
● Compact R1 frame design
● Integrated Safe Torque Off
● Standard Modbus RTU communication

Customer Questions and Answers

Industries Served

Water and Wastewater--The ACS580-01-12A7-4 can control pumps used for water transfer, circulation, filtration and pressure regulation. Adjusting motor speed to actual flow demand can reduce throttling losses and avoid unnecessary continuous operation at full speed.

Food and Beverage Processing--Suitable duties may include conveyors, mixers and process pumps fitted with compatible three-phase motors. Controlled acceleration and deceleration can provide steadier product movement and reduce mechanical shock during production starts and stops.

Material Handling and Packaging--The unit can operate conveyors, feeders and packaging equipment requiring adjustable speed. Programmable ramp times help reduce sudden belt movement, load shifting and stress on couplings, gearboxes and other transmission components.

General Manufacturing--The ACS580-01-12A7-4 can be applied to agitators, fans, pumps and auxiliary production machinery. Selection should account for motor nameplate current, starting torque, overload profile, required stopping time and the surrounding operating environment.
