8922-RB-IS MTL Railbus Isolator

Get Price Here:

Sales Manager: Frida

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Basic Information

Manufacturer: MTL Instruments (Eaton)
Product Family: MTL8000 Series I/O Infrastructure
Function: Galvanic Isolation Barrier for Railsus (MTL8000 Backplane Bus)
Primary Application: Isolation of IS field wiring modules from non-IS control network segments.

Product Description

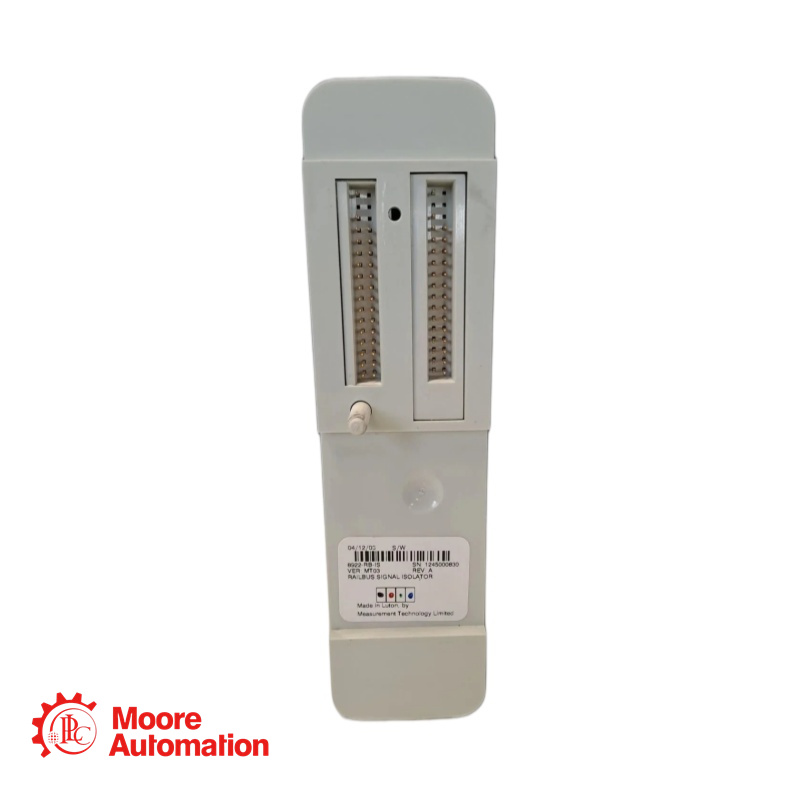

The 8922-RB-IS is a passive infrastructure component designed to segment the MTL8000 series backplane bus. It provides galvanic isolation between the "Safe Area" Railbus (connected to the controller/gateway) and the "Intrinsically Safe" Railbus (powering IS I/O modules like the 8220-DI-IS).

Technical Specifications

Application Fields

Chemical & Petrochemical:Bulk monitoring of manual valves, pressure switches, and level switches in storage tank farms.
Turbine Control Systems:Interface for vibration sensor alarm contacts (proximity probes) with LFD to ensure loop integrity.
Fire & Gas Panels:Monitoring of manual call points and smoke/heat detectors located in hazardous processing zones.
Rail & Transportation:Status feedback from track-side signaling equipment where intrinsic safety is mandated.

Frequently Asked Questions - 8922-RB-IS

Q: Does the 8922-RB-IS require an external 24V power supply?
A: No. The module is bus-powered. It draws a small quiescent current (50mA / 60mA) directly from the 12V Railsus backplane on both sides of the barrier. No separate field wiring is needed for power.

Q: What is the difference between the "2/2 Side" and "2/1 Side"?
A:
2/2 Side: Connects to the Controller/Host segment of the bus. This side is not intrinsically safe and typically carries the higher Um (250V) rating.
2/1 Side: Connects to the Field I/O Module segment. This side is protected and provides power to IS modules like the 8220-DI-IS.

Q: Can I use more than one 8922-RB-IS on a single node?
A: Yes. You can use multiple isolators to create separate protected branches. However, the isolator does not act as a repeater for distance extension; it acts as a barrier. The maximum number of modules on the IS side is limited by the 60mA available current from the isolator's 2/1 side.
