6DR5020-0NG13-0AA0 - Siemens Electropneumatic Positioner

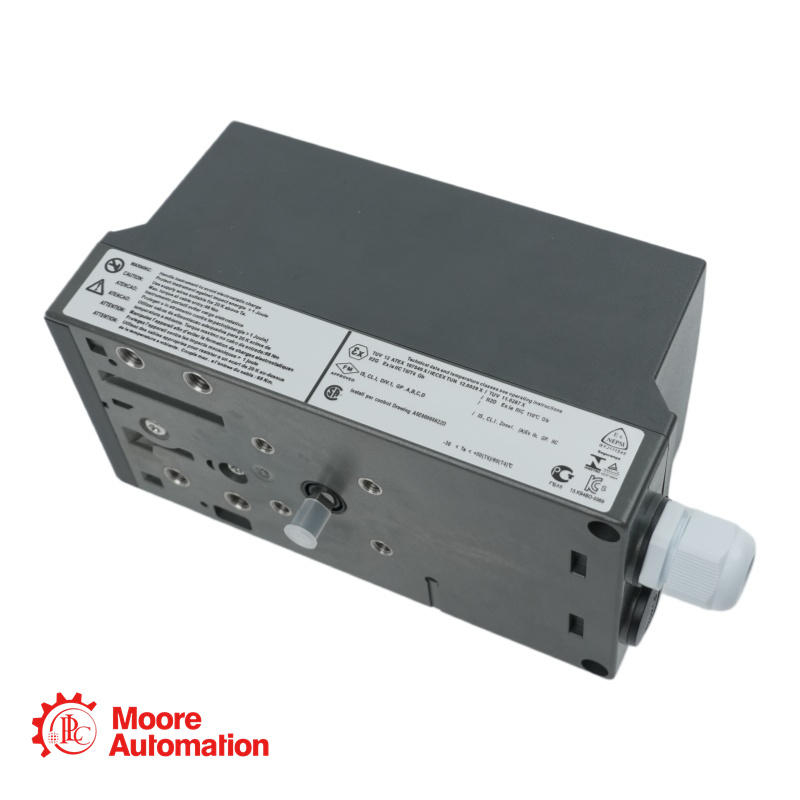

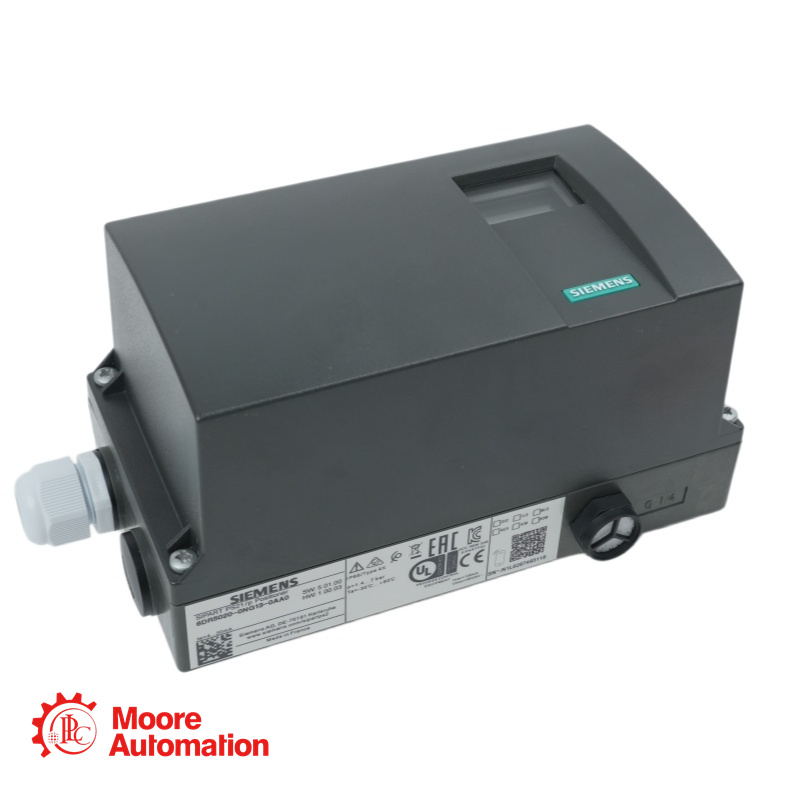

Siemens 6DR5020-0NG13-0AA0 Electropneumatic Positioner

Sales Manager: Frida

Email: sales5@mooreplc.com

6DR5020-0NG13-0AA0 is a specific configuration of the Siemens SIPART PS2 smart electropneumatic positioner designed for double-acting pneumatic actuators.

SIPART PS2 Smart, electropneumatic positioner, 4...20mA, Ex/nEx, double-acting, polycarbonate enclosure, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). Standard Without explosion protection. Connection thread el.: M20x1.5 / pneu.: G 1/4 Digital I/O Module (DIO), 1 digital input, 3 digital outputs (2 min. or max. limit values, 1 fault indicator). " Analog Output Module (AOM) and Analog Input Module (AIM). The internal position detection is not applied but can be ordered in addition with ‑Z K11 and or K12. Device plug M12 is not available. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Without Manometer block / Venting gauge block / Booster. Certificate EN 10204 type 2.1

6DR5020: SIPART PS2, 2-wire, 4–20 mA, no HART.
-0: Non-Ex / Ordinary location.
N: Double-acting actuator control.
G: Makrolon (plastic) enclosure.
1: Electrical: M20 x 1.5; Pneumatic: G 1/4.
3: Includes Digital I/O module (1 input, 3 outputs).
-0: No analog output module included.
A: Standard manufacturer configuration.
0: No pressure gauge block.
Input Signal:4 to 20 mA DC (2-wire)
Action:Double-Acting
Housing:Polycarbonate (IP66/NEMA 4X)
Supply Pressure:1.4 to 7 bar

Q: What does "Double-Acting" mean?
A:It controls two pneumatic lines (Y1/Y2) to actively drive a valve in both directions.

Q: Is this model for hazardous areas?
A:No, the "-0" indicates standard non-explosion-proof design.

Q: What does the Digital I/O Module do?
A:It provides 1 digital input and 3 digital outputs for status feedback
