ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
330101-00-70-10-02-05น้ำหนัก :
0.05kgมิติ :
1.5x1.3x116cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
3300 XL 8 mm Proximity Probe
|

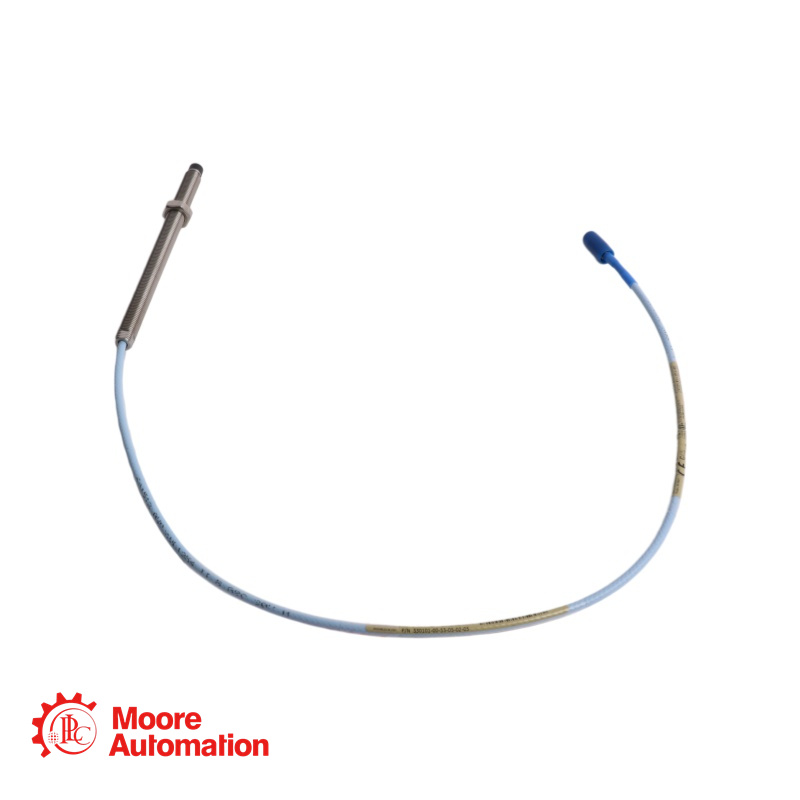

Bently Nevada 330101-00-70-10-02-05 3300 XL 8 mm Proximity Probe |
|
330101-AA-BB-CC-DD-EE
330101:3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
A: Unthreaded Length Option: 00 0.0 in
B: Overall Case Length Option: 70 7.0 in
C: Total Length Option: 10 1.0 meter (3.3 feet)
D: Connector and Cable-Type Option: 02 Miniature coaxial ClickLoc connector, standard cable
E: Agency Approval Option: 05 CSA, ATEX, IECEx Approvals
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
Bently Nevada 330101-00-70-10-02-05 FAQ |
||
|
What is the measurement range and scale factor?
Linear Range: 2.0 mm (80 mils).
Scale Factor: 7.87 V/mm (200 mV/mil) with compatible Proximitor
How do I correctly set the initial mechanical gap?
The recommended physical gap is 1.27 mm (50 mils), yielding a target installation voltage of approximately −9 VDC to −11 VDC.
Can I mix this probe with older Bently Nevada parts?
Yes. The 3300 XL 8 mm probe is backward compatible with standard 3300 series 5 mm and 8 mm system components.
Product Series: Bently Nevada 3300 XL 8 mm Proximity Transducer System
The 3300 XL 8 mm Proximity Transducer System consists of: One 3300 XL 8 mm probe, One 3300 XL extension cable1, and One 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
|
||
|
