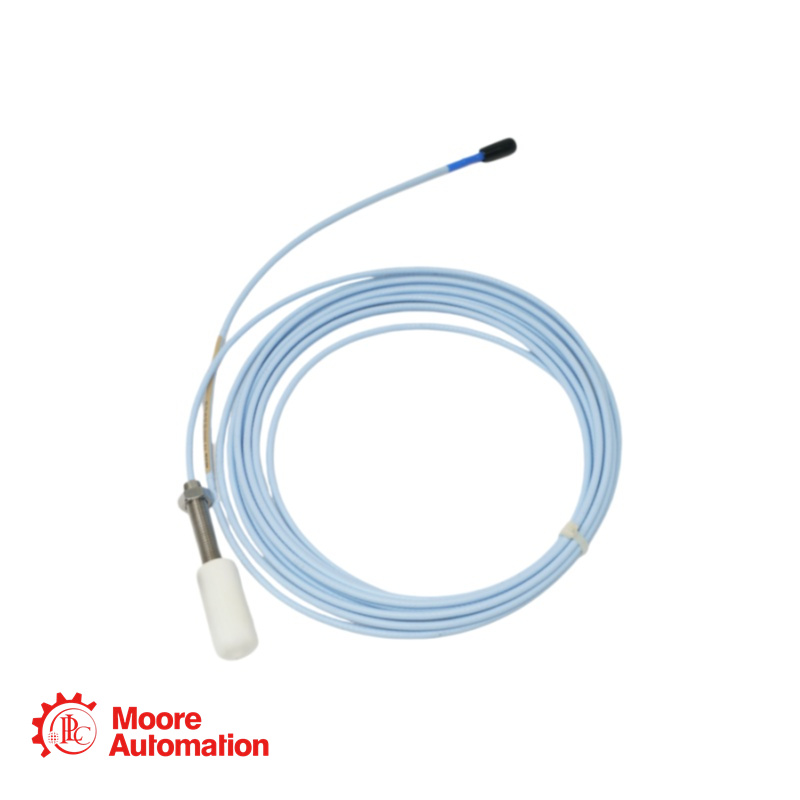

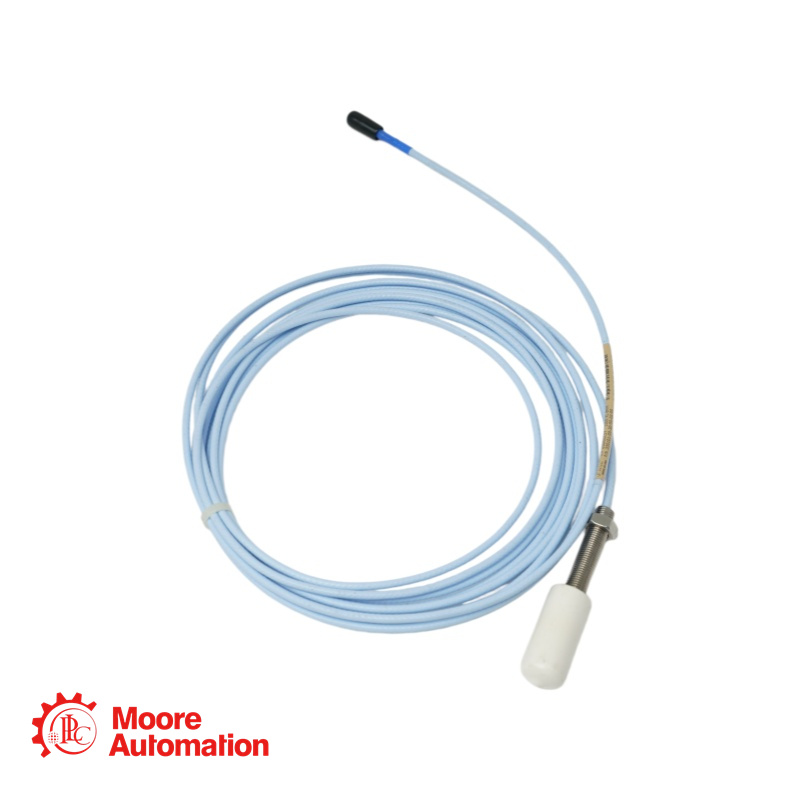

330101-00-30-90-02-05 Bently Nevada Proximity Probe

CONTACT US TO GET 330101-00-30-90-02-05'S PRICE

330101-00-30-90-02-05 DESCRIPTION

330101-00-30-90-02-05 FEATURES

❯ API 670 Compliance: Fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
❯ Robust Mechanical Design: Features patented TipLoc molding for a robust bond between probe tip and body, and patented CableLoc design providing 330 N (75 lbf) pull strength.
❯ Secure Connectors: Equipped with corrosion-resistant, gold-plated ClickLoc connectors that "click" when finger-tight and lock into place to prevent loosening from vibration.
❯ Backward Compatibility: Electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm transducer system components.
❯ Hazardous Area Certified: The "-05" approval option includes CSA, ATEX, and IECEx certifications for use in hazardous locations.
❯ Extended System Length: This 9.0 meter probe is designed for use with a matching 9.0 meter Proximitor Sensor, allowing greater separation between the probe and monitoring electronics.

330101-00-30-90-02-05 SPECIFICATIONS

330101-00-30-90-02-05 FREQUENTLY ASKED QUESTIONS

For radial vibration measurements, the recommended gap setting is 1.27 mm (50 mils) , which corresponds to approximately -9 Vdc output. This places the probe in the center of its 2.0 mm (80 mil) linear range.

※What does the "-05" agency approval option mean?

The "-05" option indicates that this probe carries multiple hazardous area approvals, including CSA for North America, and ATEX and IECEx for international use. It is approved for use in intrinsically safe (ia) and non-incendive (nA/ec) applications.

※What is the maximum recommended torque for installing this 330101-00-30-90-02-05 probe?

The maximum recommended torque for standard forward mounted probes is 11.2 N·m (100 in·lb) . The first three threads should only be torqued to 7.5 N·m (66 in·lb). Exceeding these values may damage the probe.
