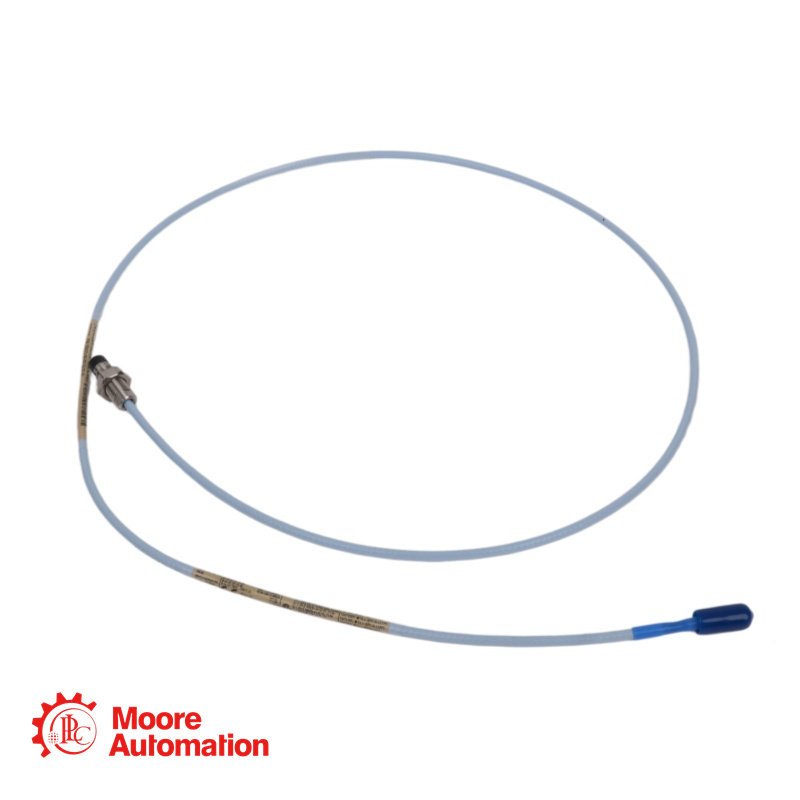

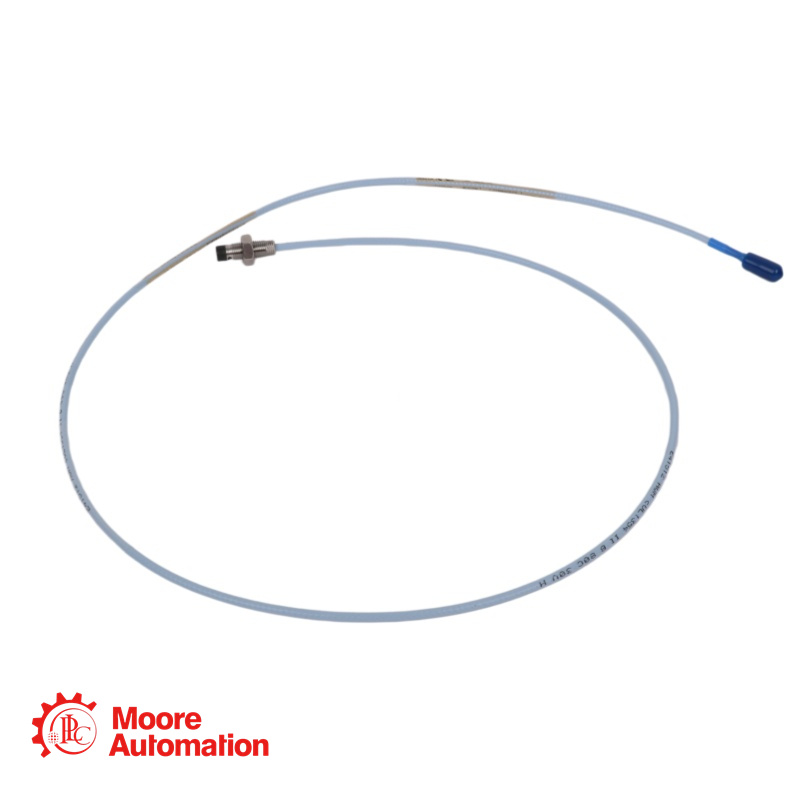

The Bently Nevada 330101-00-09-20-02-05 is a 3300 XL 5 mm proximity probe.
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
330101-00-09-20-02-05น้ำหนัก :
0.1 kgมิติ :
2.6x2.3x123cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Proximity Probe
330101-00-09-20-02-05
The Bently Nevada 330101-00-09-20-02-05 is a 3300 XL 5 mm proximity probe, an eddy current sensor that measures displacement and vibration of rotating machinery shafts without physical contact. The 5 mm diameter is specifically designed for applications where space constraints prevent the use of larger 8 mm probes.
Technical Specifications for 330101-00-09-20-02-05
|
Unthreaded Length |
00:No unthreaded section (0 mm) |
|
Case Length |
09:0.9 inches (22.9 mm) |
|
Total Cable Length |
20:2.0 meters (6.6 feet) |
|
Connector/Cable Type |
02:Standard cable with ClickLoc™ connector |
|
Agency Approvals |
05:Multiple industrial certifications (CE, RoHS, etc.) |
|
Series |
3300 XL |
|
Probe Diameter |
5 mm (0.2 in) |
|
Tip Material |
PPS (Polyphenylene sulfide) |
|
Frequency Response |
DC to 10 kHz (-3dB) |
|
Cable Pull Strength |
≥330 N (75 lbf) with CableLoc |
FAQ about 330101-00-09-20-02-05
What is unique about the 09 case length code?
The 09 code indicates a 0.9-inch (22.9 mm) threaded case length, the shortest standard case length available for the 3301 series 5 mm probe.
What is the measurement range of this 5 mm probe?
Probe tip: -52°C to +177°C (-62°F to +351°F).The 5 mm probe provides a linear range of approximately 0.25 mm to 2.3 mm (10 to 90 mils) gap. The typical operating gap is 1.0-1.5 mm (40-60 mils). The output voltage ranges from -1 Vdc to -17 Vdc over this range.
What is the minimum target size for this probe?
Minimum flat target: 8.9 mm (0.35 in) diameter
Recommended minimum flat target: 13 mm (0.5 in) diameter
Minimum shaft diameter (standard X-Y configuration): 30 mm (1.2 in)
|
