ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
31000-28-05-00-056-01-02น้ำหนัก :
1.5kgมิติ :
37x9x8cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :

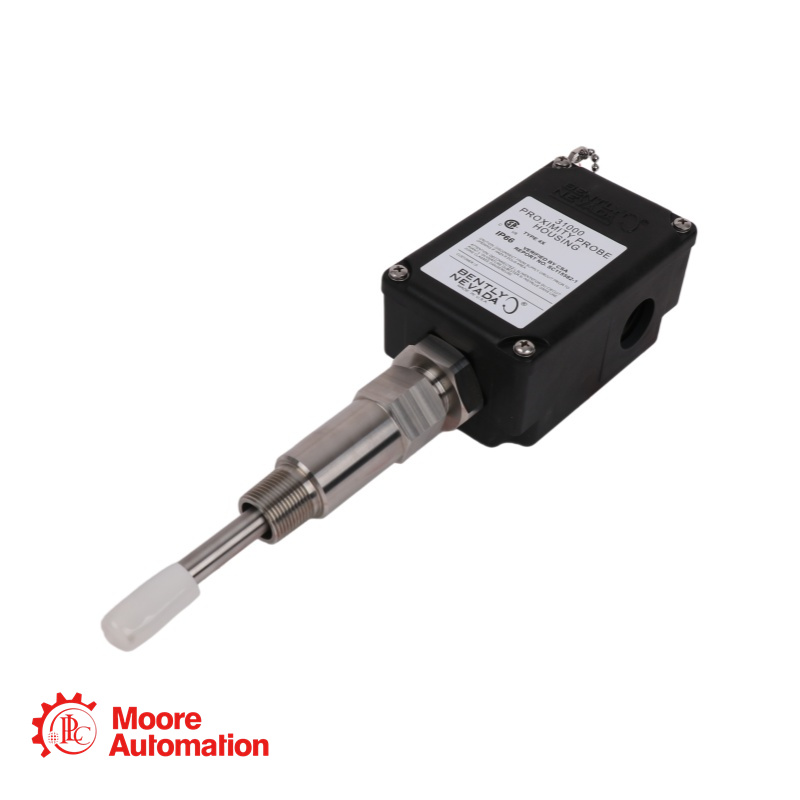

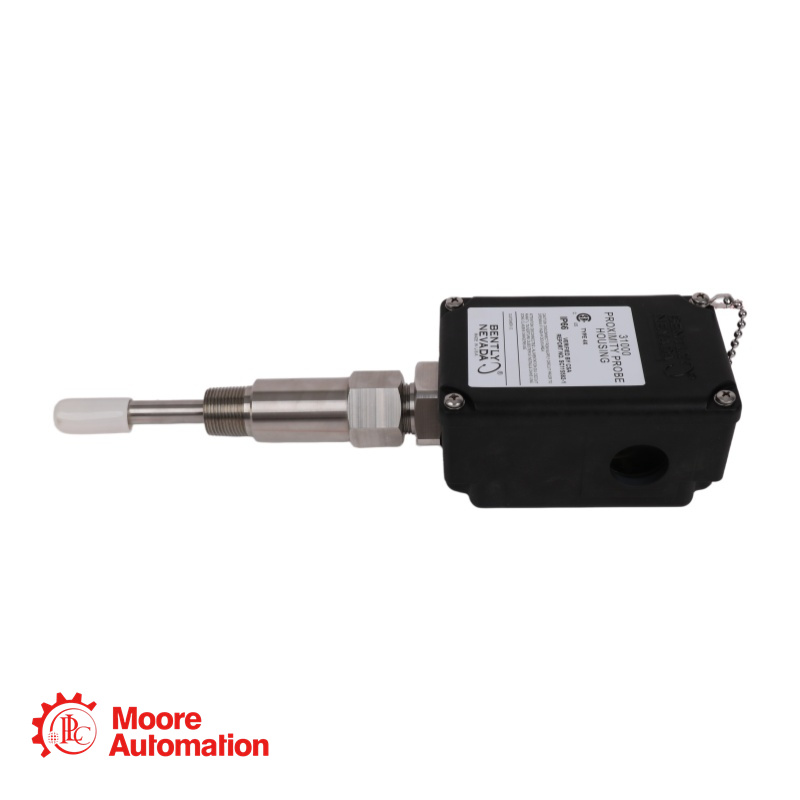

Proximity Probe Housing Assembly
※Contact & Order
✉ Email: sales5@mooreplc.com
※Part Number Breakdown
B (Probe Cable Length):05 0.5 meter (20 inches)
C (Standoff Adapter Length):00 No standoff adapter
D (Probe Penetration):056 5.6 inches (142 mm) probe sleeve penetration
E (Fittings):01 One 3/4-14 NPT fitting, two plugs
F (Mounting Thread):02 3/4-14 NPT outer sleeve
※General Information
Field
Value
Product ID
31000-28-05-00-056-01-02
Type Designation
31000 Proximity Probe Housing Assembly
Manufacturer
Bently Nevada (Baker Hughes)
Catalog Description
Externally mounted proximity probe housing for vibration and Keyphasor measurements
Long Description
The 31000 housing assembly allows external access to proximity probes for gap adjustment or replacement without machine disassembly. Made of corrosion-resistant PPS thermoplastic with stainless steel components. Fully compliant with API 670 standard. This model includes a 3300 XL 8 mm probe with multiple hazardous area approvals.
Product Family
31000 / 32000 Series
※Core Data
Parameter
Specification
Probe type
3300 XL 8 mm reverse mount
Cable length
0.5 meter (20 inches)
Approvals
Multiple (hazardous area – ATEX/IECEx/cNRTLus)
Connector
Miniature ClickLoc coaxial
Probe operating temp (3300 XL 8 mm)
−51°C to +177°C (−60°F to +351°F)
Probe storage temp
−51°C to +177°C
※Applications
Compressors:Shaft vibration & position in centrifugal/reciprocating compressors
Pumps:Bearing vibration & shaft position in large industrial pumps
Fans & blowers:Critical asset protection
Oil & gas:Offshore platforms, refineries, pipelines
Power generation:Steam/gas turbines, generators, hydro plants
Marine:Main propulsion shaft monitoring (ABS/DNV certified)
|
