The 2MBI600VXA-120E-51 is a high-speed switching IGBT module from Fuji Electric's V series.
ยี่ห้อ :
Fujiส่วนจำนวน :
2MBI600VXA-120E-51น้ำหนัก :
0.4 kgมิติ :
6.8x8.5x13cmประเทศต้นกำเนิด :
Japenรหัส HS :
8537101190คำอธิบาย :
IGBT module
Brand
Fuji
Part number
2MBI600VXA-120E-51
Origin
Japen
Description
IGBT module
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Description of 2MBI600VXA-120E-51

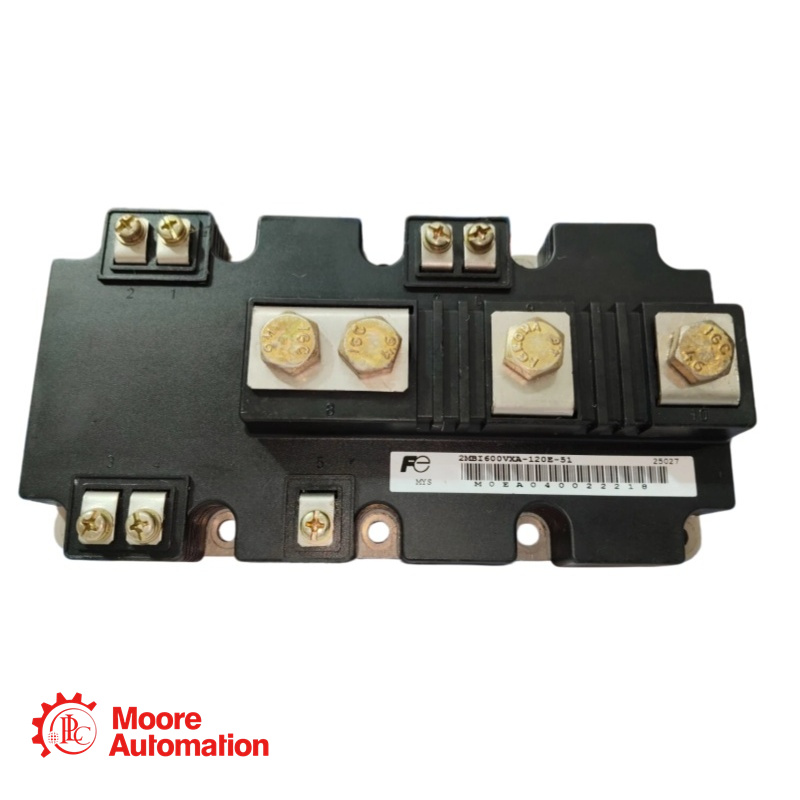

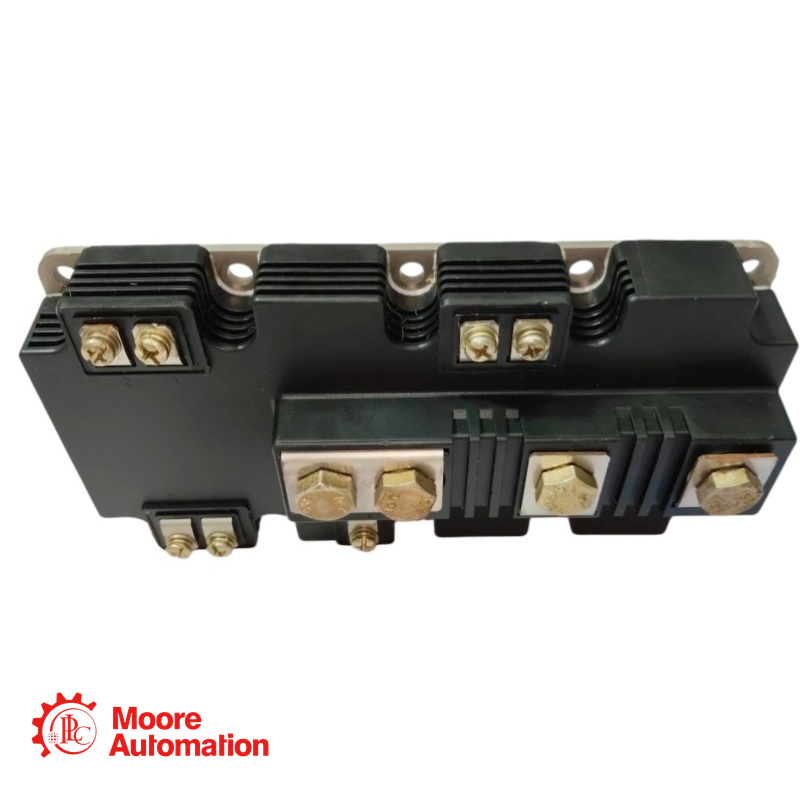

The 2MBI600VXA-120E-51 is a high-speed switching IGBT module from Fuji Electric's V series. It features a 1200V / 600A rating in a 2-in-1 package, integrating both IGBT and Free Wheeling Diode (FWD) for a single inverter leg. The module is designed with a low-inductance structure to minimize switching losses and voltage spikes, making it suitable for high-efficiency power conversion systems.
Inverters for Motor Drive
AC and DC Servo Drive Amplifiers
Uninterruptible Power Supplies
Industrial machines, such as Welding machines
Parameter
Absolute Maximum Ratings (Tc=25°C unless otherwise specified)
Collector-Emitter voltage (Vces): 1200V
Gate-Emitter voltage (Vges): ±20V
Collector current, Pulse (Ic pulse): 1200A for 1ms
Collector Power Dissipation (Pc): 3350W per device
FAQ
What are the recommended screw torques for installing this module?
A: To ensure proper thermal and electrical contact without damaging the module, Fuji Electric recommends the following torques:
Mounting Screws (M5): 3.0 ~ 6.0 N·m
Main Terminal Screws (M8): 8.0 ~ 10.0 N·m
Sense Terminal Screws (M4): 1.8 ~ 2.1 N·m
Why are there sense terminals on the module?
A: The sense terminals (Sense C1, Sense C2E1, Sense E2) are provided for accurate measurement of the collector-emitter on-state voltage and switching characteristics. By using these Kelvin-connected sense terminals, the measurement is not affected by the voltage drop across the high-current main terminals, providing a true reading of the IGBT chip's voltage.
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
