2711-K6C2L1 Operator Terminal

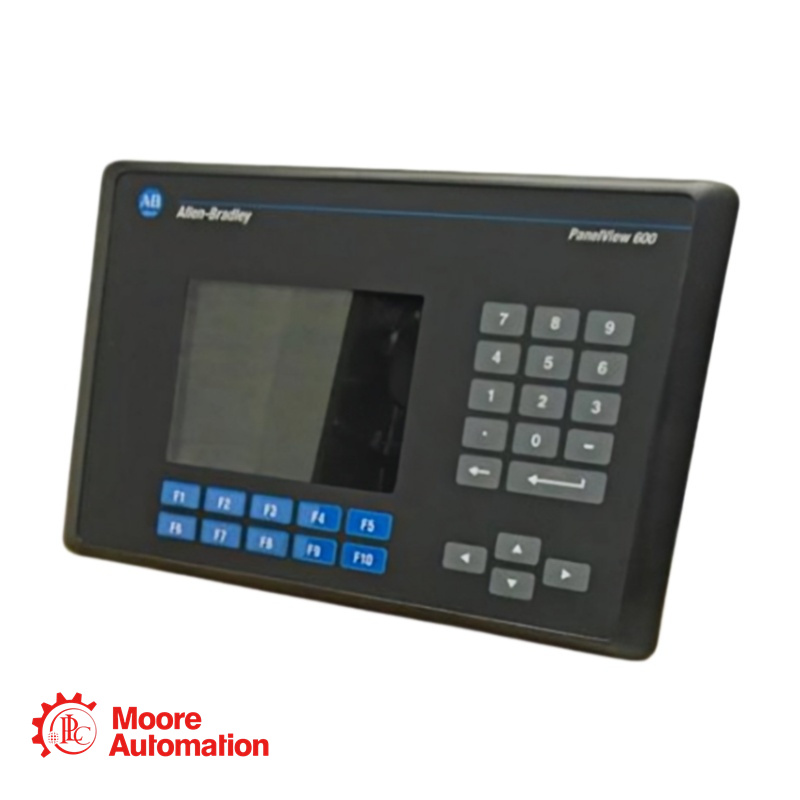

The 2711-K6C2L1 operator terminal is a standard type of operator terminal from the Panelview 600 terminal series. It is powered by DC voltage and its operating voltage range is from 18 to 32 Volts DC. The 2711-K6C2L1 operator terminal has a 6-inch screen with color graphics for displaying data. This terminal has a DH-485 type of communication port. The 2711-K6C2L1 operator terminal is controlled through a keypad with navigation keys, number keys, and programmable function keys. This HMI terminal does not require a license to operate. This HMI comes with a DH485 communication interface.

Specifications of 2711-K6C2L1

Product Type:PanelView 600 Standard Operator Terminals
Product Line:Panelview 600
Part Number:2711-K6C2L1
UPC:662072837603
Weight:4.25 lbs (1.93 kg)
Backlight:100,000 hr LED backlight life
Product Family:PanelView Standard Operator Terminals
Display Type:Monochrome transflective LCD with LED backlight
Display Area:120 x 60 mm (4.75 x 2.38 in.)
Resolution:256 x 128
Keypad Assembly:10 function keys (F1…F10)
Application memory:170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps)
Communication ports:DH485
Input Voltage range:18…32V DC
Enclosure NEMA Type:12/13, 4X (Indoor use only), IP54, IP65
Status Indicators:COMM: Green Fault: Red
Display Size:5 in.
Display Color:Color

FAQ of 2711-K6C2L1

Q:Does this HMI come with a Real-time clock?
A:Yes, it has a battery-backed clock which also timestamps critical data.
Q:What is the internal memory allocation of the 2711-K6C2L1?
A:This 2711-K6C2L1 has 190KB runtime and 240KB non-volatile memory.
Q:What is the power consumption of the 2711-K6C2L1?
A:The power consumption of this HMI is 34 W max (1.9 A at 24V DC)

Technical Notes

The 2711-K6C2L1 is a PanelView 600 Standard Operator Terminal.

This operator terminal is powered by an external 18-32V DC supply voltage and has a 5-inch colored display with embedded DH485 communication port.

It has Ten (10) fully programmable function keys.
