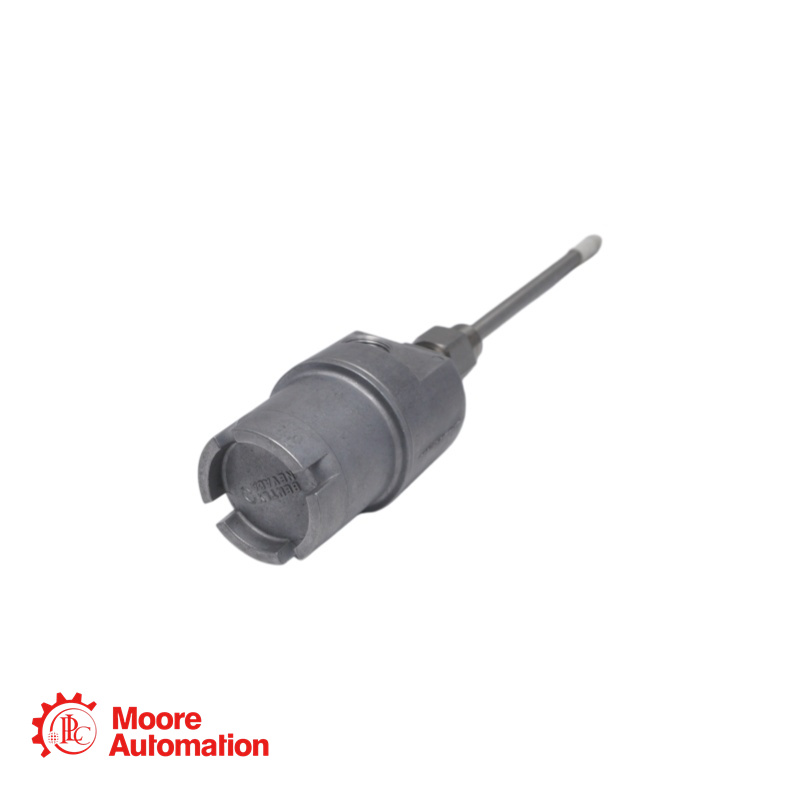

The 21000-16-10-15-070-03-02 is an aluminum proximity probe housing assembly designed for externally mounting proximity probes in industrial applications.
ยี่ห้อ :
Bently Nevadaส่วนจำนวน :
21000-16-10-15-070-03-02น้ำหนัก :
1.38kgมิติ :
49x8.5x8.5cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Proximity Probe Housing Assembly
How to Get Price? Contact Below:
Frida
Email:
Phone
/Whatsapp
/Wechat:
21000-16-10-15-070-03-02 Overview
Part Number
21000-16-10-15-070-03-02
Product Type
Proximity Probe Housing Assembly
Product Family
21000 Proximity Probe Housing Assemblies
Status
Original New with factory seal
Warranty
1 Years after Delivery of Goods
The 21000-16-10-15-070-03-02 is an aluminum proximity probe housing assembly designed for externally mounting proximity probes in industrial applications.
21000-16-10-15-070-03-02 Parameters
21000-AA-BB-CC-DDD-EE-FF: 21000-16-10-15-070-03-02
A: Probe with Connector
16: 3300 XL 8mm probe
B: Probe Cable Length
10: 1.0 m (39 in)
C: Standoff Adapter
15: Minimum length 1.5 in (38 mm)
D: Probe Penetration
070:7.0 in
E: Fittings
03:
F: Mounting Thread
02: 3/4-14 NPT
One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for
the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
Housing Material:Aluminum body with 304 stainless steel sleeve
Temperature Range (Housing):-51°C to +177°C (-60°F to +351°F) operating and storage
Probe Temperature Limit:-34°C to +177°C (-30°F to +351°F) operating
FAQ about 21000-16-10-15-070-03-02
1. What are the "C" (Standoff Adapter) and "D" (Probe Penetration) dimensions?
The C dimension (1.5 inches) is the length of the standoff adapter that spaces the housing away from the machine surface. The D dimension (2.9 inches) is the length that the probe sleeve penetrates into the machine. Together (C + D = 4.4 inches total), they determine the total probe tip position relative to the target .
2. What is the purpose of the connector protector on the probe (option "16")?
The connector protector provides environmental sealing for the connection point between the probe and extension cable. It prevents moisture, oil, and other contaminants from entering the ClickLoc™ connector, which could otherwise degrade signal quality and cause measurement errors.
3. Is this housing assembly certified for use in hazardous areas?
Yes, the 21000 housing is CSA certified for explosion-proof applications in North America. It is rated for Class I, Divisions 1 and 2, Groups C and D, and Class II, Divisions 1 and 2, Groups E, F, and G. It carries temperature ratings of T5 and T4 depending on ambient temperature.
4. What is the total probe penetration length (C + D) for this assembly?
The total probe penetration length is C + D = 1.5 + 2.9 = 4.4 inches (112 mm) . This is within the standard limits for a 1.0 meter probe cable.
5. What type of probe is included with this assembly?
The PROX OUT signal is not isolated from the 4-20 mA loop, and its phase is inverted.Option "16" specifies a 3300 XL 8mm reverse mount probe with a connector protector installed. The probe cable length is 1.0 meter, as specified by the "10" option.
6.What is the purpose of the fittings option "03"?
Option "03" provides a comprehensive set of conduit fittings including one plug, one reducer (3/4-14 NPT to 1/2-14 NPT), and a cable seal grip with grommets. This allows for flexible conduit connections and proper sealing of the cable entry point to maintain the environmental integrity of the housing.
