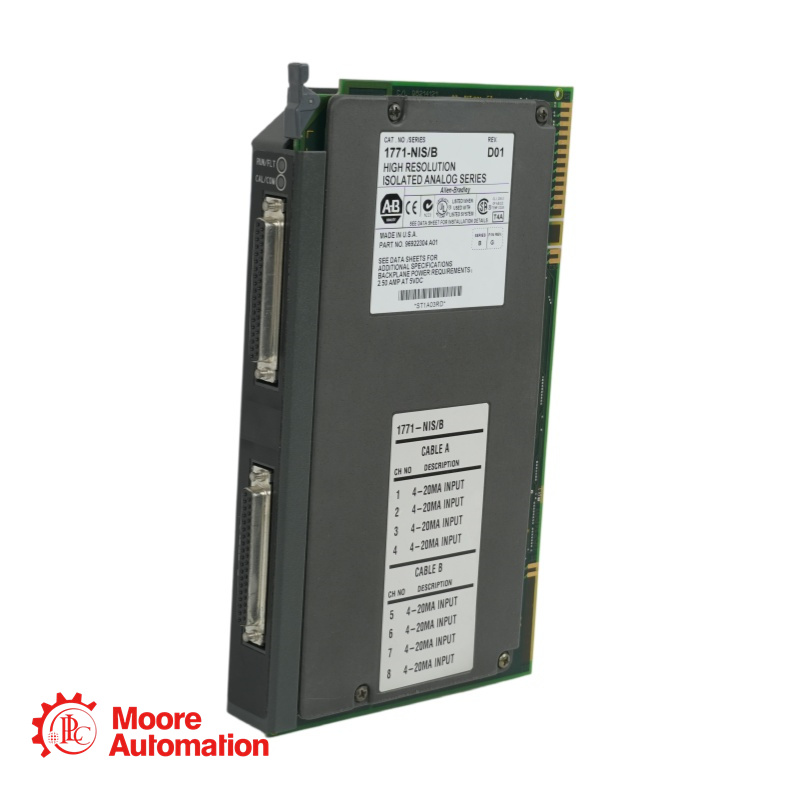

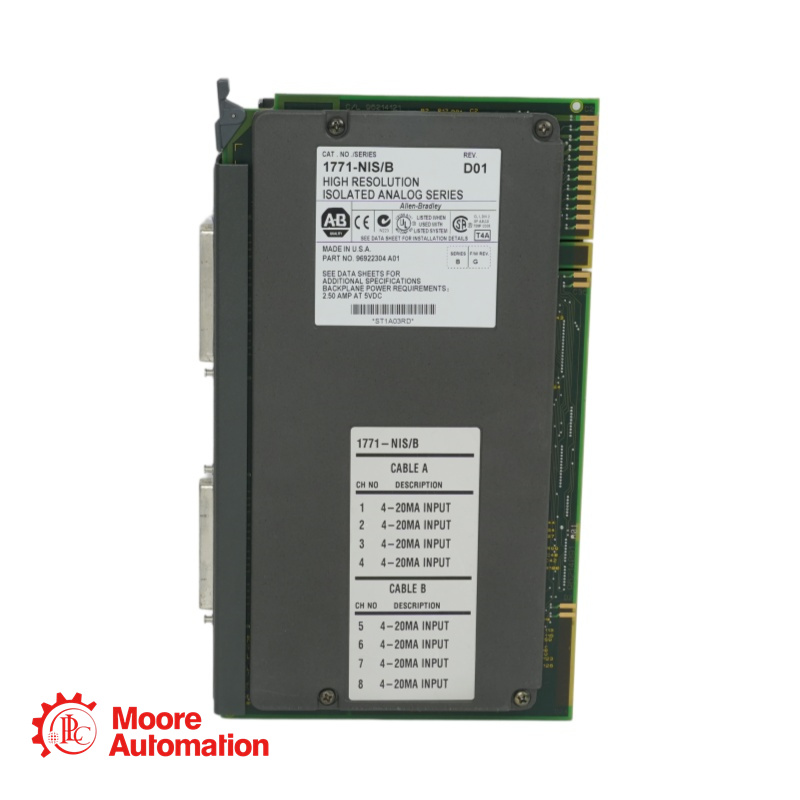

1771-NIS/B is PLC-5 High Resolution Analog Input Module, 8 x Current 4-20mA Inputs, Isolated, supplies loop power
ยี่ห้อ :
PLCส่วนจำนวน :
1771-NIS/Bน้ำหนัก :
0.75kgมิติ :
3x15.2x25.8cmประเทศต้นกำเนิด :
USAรหัส HS :
8537101190คำอธิบาย :
Analog Module
|
1771-NIS/B Analog Module |
|
I/O adapter modules for 1771 I/O are available for ControlNet, Universal Remote I/O, and Extended Local I/O links. The 1771-ASB is compatible with an I/O link with 32 I/O-adapter devices and either 82W or 150W termination
Product Series: PLC-5 (Bul. 1770 / 1771) Component Type PLC & I/O: Analogue In/Out Module Number Of Channels:8 Operating Temperature, Max:60 °C max Operating Temperature, Min:0 °C min
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
1771-NIS/B Analog Module FAQ |
||
|
What are the primary signal ranges and resolution capabilities of the 1771-NIS/B? The module operates primarily on a 4–20 mA input range. It provides high-performance 16-bit unipolar resolution, which translates down to a fine precision of 330 nA/bit (0.34 µA/bit).
What is the main difference between Series A and Series B (/B)? The Series B (/B) variant features upgraded internal firmware component optimizations and tighter calibration metrics. Series B modules are structurally drop-in replacements for older Series A variants.
Does this module require an external loop power supply for field transmitters? No, the 1771-NIS/B supplies internal loop power (20–30V DC) directly through its current sourcing input circuitry. This eliminates the need to route field loops through an external bulk 24V DC power supply panel.
Product Series: 1771 Universal I/O
Introduced alongside the PLC-5 controller family, the 1771 Universal I/O platform was one of the most widely deployed chassis-based industrial I/O systems in manufacturing history. It is characterized by its rugged, modular design, relying on Block Transfer Read/Write (BTR/BTW) programming instructions to move data between specialty analog modules and the central processor over a backplane.
The "N-Series" sub-family (such as the 1771-NIS) represents the high-resolution, isolated analog tier of this platform, engineered specifically to handle high-accuracy process signals without interference in harsh electrical environments.
|
||
|
Related Products |
1771-RTP4: Remote termination panel for N-series analog modules.
1771-NC6: 6-foot interface cable for N-series modules.
1785-L20B: PLC-5/20 controller with 16K memory words.
1785-L40B: PLC-5/40 controller with 48K memory words.
1771-ASB: Remote I/O (RIO) chassis adapter module.
1771-NOC: 8-channel isolated analog output module.
1771-IFE: 16-channel standard differential analog input module.
|
